Shuttered UV irradiators for label, offset and gravure printing, configured around print speed, substrate, curing width and budget.
Oz-Cure supplies shuttered UV irradiators for web printing on label, offset and gravure presses. Shutters can be motor-driven or pneumatically operated, with dichroic or polished aluminium reflectors.
Lamp wattage varies with print speed and substrate. Curing widths range from 75 mm to 2000 mm, with systems built around individual requirements and budget.
Oz-Cure’s equipment experience began with local servicing and manufacturing in 1992. Its relationship with Run Wing UV now supports equipment design and manufacture in China, backed by local service technicians. Computerised equipment uses Mitsubishi PLCs, with other designs considered.

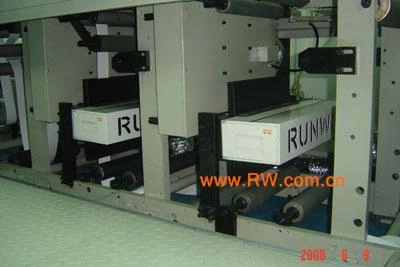

A printing-press installation from the Oz-Cure brochure, with shutter control built around the press cycle.
Shuttered UV irradiators for label and bottle printers. Rotating reflectors protect the substrate when the press stops, while the lamp drops to a lower power setting and returns on start-up.
A press stop/start interlock controls the shutter. Tri-power ballasts manage lamp settings, and a timer keeps the fan running for four minutes after the lamp is switched off.
Explore the options before discussing a configuration with Oz-Cure.
Alongside shutter systems, Oz-Cure can discuss Runwing LED UV equipment for web and label printers. Ask about suitability for your press and curing application.
Discuss a web-printing applicationUse these published product details as the starting point for your enquiry. Discuss the final equipment configuration with Oz-Cure.
Discuss your requirements| Printing applications | Label, offset and gravure web printing |
|---|---|
| Curing widths | 75 mm to 2000 mm |
| Shutter drive | Motor or pneumatic |
| Reflectors | Dichroic or polished aluminium |
| Lamp wattage | Application-specific: print speed and substrate |
| Computerised control | Mitsubishi PLC; other designs considered |
| Warranty | 12 months |
| Service | Backed by local service technicians |
Open a photograph to inspect the equipment. Images are based on photographs from Oz-Cure’s original website or supplied by Oz-Cure. Studio-retouched versions are labelled; Runwing supplier photographs are credited in their captions.
Print speed and substrate determine the application requirement. Oz-Cure selects the lamp specification as part of the system discussion.
The range includes dichroic and polished aluminium reflectors.
Oz-Cure supplies equipment designed through the Oz-Cure and Run Wing UV relationship and manufactured in China. Earlier Oz-Cure systems were made in Australia.
The equipment comes with a 12-month warranty, backed by local service technicians.
We will match any advertised price. Include the advertised offer when requesting a tailored quote.
Request a quoteTell us about your application. We'll help you take the next step.
